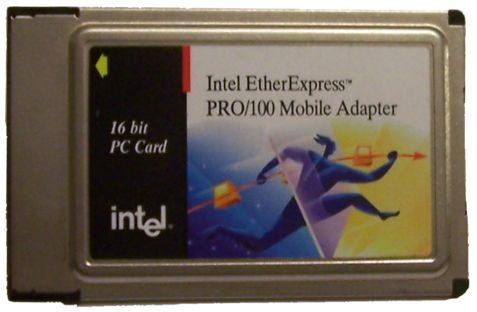

Intel PRO/100 MBLA1600 P/N 670666-001 LAN 10/100 PCMCIA PC Card
Quantity available:   1
Price:  $29.00

Description


Features
  • The Intel PRO/100 Ethernet 10/100 provide access to both 10Mbps and 100Mbps networks. Upon connection, 10Mbps or 100Mbps network speed is autonegotiated.
  • All modern personal computer operating systems have built-in support for this Plug & Play and Hot Swappable Card.
  • Use it with your laptop running DOS, Windows or Linux.
Specification
ManufactureIntel
ModelMBLA1600
Part Number670666-001
Form FactorPlug-in module
Data Transfer Rate10/100 Mbps
Network Interface 100BASE-TXEthernet IEEE 802.3u
Network Interface 10BASE-TEthernet IEEE 802.3
Bus Type16-bit
PC Card TypeType II PC Card
Data Link ProtocolEthernet, Fast Ethernet
Data interfacePCMCIA compliant, 68-pin connector
Network Cable SpecificationsUTP Category 3, 4 or 5 cable (100 Mbps)
Dimensions86 mm x 54 mm x 5 mm (3.37 x 2.13 x 0.197 inches)
Weight0.85 oz (24 g)
Power Requirements+5 V 5%
Power Requirements 100BASE-TX460 mA maximum, 320 mA typical
Power Requirements 10BASE-T490 mA maximum, 340 mA typical
System Requirements
    Hardware:
  • Laptop with a PC Card slot
  • Dongle (cable), this card will be shipped WITHOUT dongle
  • UTP Category 3, 4 or 5 cable, this card will be shipped WITHOUT this cable

  • Software:
  • Operating Environments:
    The Card supports Windows XP/2000, Windows Me (Millennium Edition), Windows 98, Windows 95 version 950b (OSR2), Windows NT 4.0, Windows 3.x, DOS and Linux.
  • This card will be shipped WITHOUT docs or software.
  • There are drivers for DOS - Windows 2000 on Intel and description.
  • For Windows 2000 and higher you no need drivers.
Package includes
1 MBLA1600 670666-001 PC Card
Condition
used, completely tested in perfect working condition.
